Advantages
High resistance to corrosion
Non-magnetic properties
Low and unique density
Excellent heat transfer performance
High melting point
Superior tensile strength
Specifications
Seamless Titanium Tube / Pipe
Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16, etc.
Outer Diameter: 3–110 mm
Wall Thickness: 0.1–5.5 mm
Length: ≤ 19,000 mm
Welded Titanium Tube / Pipe
Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16, etc.
Outer Diameter: 10–1,000 mm
Wall Thickness: 0.5–5.5 mm
Length: ≤ 19,000 mm
Standards
ASTM B338 / ASME SB338
ASTM B337 / ASME SB337
ASTM B861 / ASME SB861
ASTM B862 / ASME SB862
AMS 4911, AMS 4928
Material Grades
Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc.
Surface Treatment
Pickling, polished, bright finish, etc.
Features
-
Low density and high strength
-
Excellent corrosion resistance
-
High temperature resistance
-
Excellent cryogenic performance
-
Non-magnetic and non-toxic
-
Good thermal properties
-
Low modulus of elasticity
Applications
Titanium has long proven to be an indispensable material in modern industry due to its combination of strength, corrosion resistance, and light weight.
It is widely used in the following sectors:
Aerospace and aviation: airframes, engine components, structural tubing
Chemical processing: reactors, piping systems, heat exchangers
Power generation: surface condensers, seawater cooling systems
Oil and gas: offshore and subsea equipment
Marine industry: desalination systems, seawater piping
Medical field: surgical instruments and implants
Titanium tubes can be easily fabricated, welded, and formed for a variety of industrial uses.
Currently, there are 38 titanium grades that meet ASME B338 and ASTM B338 standards for pressurised service.
Common grades include Gr1, Gr2, Gr3, Gr7, Gr9, Gr11, Gr12, Gr16, Gr17, Gr26 (TiRU-26TM), and Gr27 (TiRU-27TM).
Among these, Grade 2 titanium is most widely used, especially in power plant surface condensers.
Typical titanium alloys for tubing include Ti-3Al-2.5V and Ti-6Al-4V.
Product Tags:
|
|

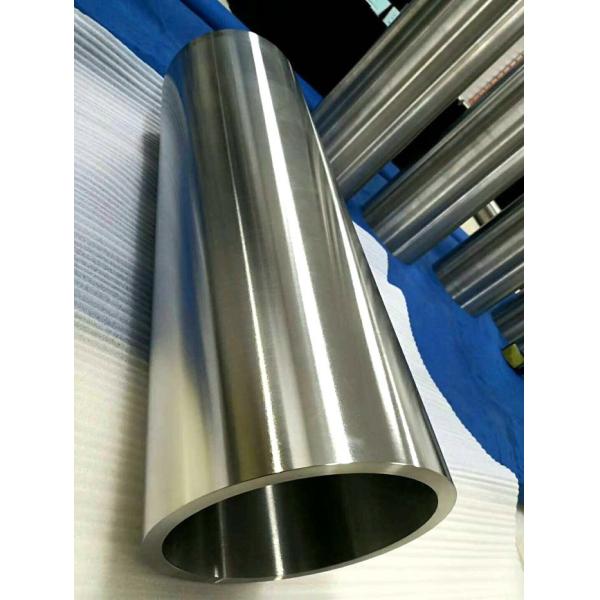

ASTM B338 Gr2 Seamless Titanium Tubing Industrial Aircraft Industry Images
|
